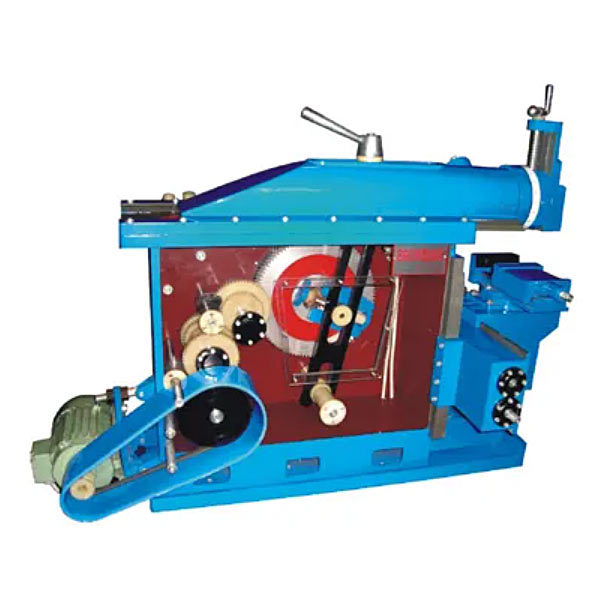

Transparent beef head planing teaching and training device

Transparent beef head planing teaching and tr--ning device,Pressorrhea and feeding experimental desk

1. Product function:

1. Select transparent organic glass, and parts use aluminum parts to fully see the internal structure and movements of the product. There is no sandyst surface on the casting, and the surface accuracy of the processing parts is RA1.6.

2. All anatomical elements can operate normal mechanical operation.

3. Fully display each subtle structure and institutional assembly device.

4. Automatic operation and interpretation of the product operation process, so that students can intuitively understand the overall process.

2. Technical parameters:

** Plating length: not less than 250mm

Workbench ** Horizontal itinerary: not less than 400mm

Workbench ** Vertical itinerary: not less than 100mm

Work table size (length × width): not less than 200mm × 150mm

Blade frame ** Vertical itinerary: not less than 70mm

Blade frame ** Rotate angle: ± 30 °

Style reference size (long × width × height): not less than 870mm × 640mm × 650mm

M--n motor power: not less than 0.25 kilowatts

The machine tool can be a five -speed transmission, equipped with organic tiger pliers

Transparent beef head planing teaching and tr--ning device,Pressorrhea and feeding experimental desk

Experimental project content:

1. Draw a brief picture of the system mechanism

2. Understand the mechanical transmission scheme, the application of various parts and components in machinery, and the basic structure of various machinery;

3. Through the analysis of the mechanical transmission scheme and structure, master the basic requirements of mechanical motion schemes and structural design, and cultivate the design capacity, structural design ability and innovative awareness of the mechanical system motion scheme.

4. Analyze the characteristics of the transmission scheme of each machine, and propose other solutions to realize the same function.

5. Analyze the applications of various institutions and components and components, and propose a solution that can be used.

6. By disassembling and analyzing the forms of various typical structures, and pointing out which structures are designed according to the strength and which structures are designed according to the requirements of the structure.

7. Design and draw control system electrical diagram

M--n technical features:

The punching machine and feeding experimental device are suitable for mechanical design experimental teaching, which has distinctive characteristics.

(1) It corresponds to the m--n content of the course, including various common institutions and universal machinery parts;

(2) Have the practical background of the engineering, the use function is obvious;

(3) Good intuition;

(4) Moderate structural complexity, and the transmission scheme and structure are novel. Through the analysis of the transmission scheme and structure of the device, students can grasp the basic requirements of mechanical system motion solutions and structural design, and cultivate the design capacity, structural design ability and innovative awareness of the mechanical system motion scheme.
